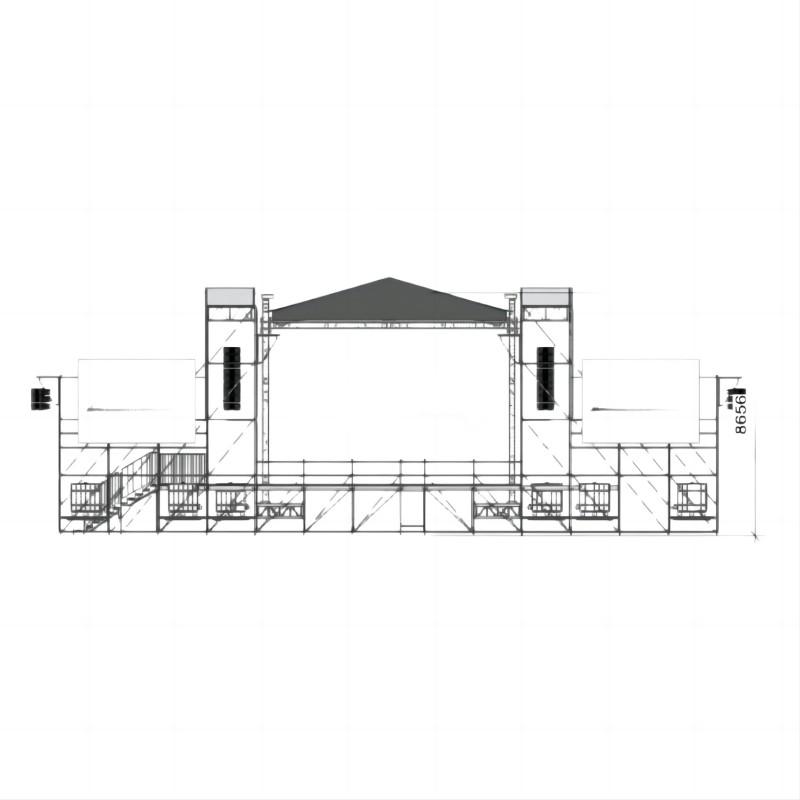

10x8x8m Aluminum Layher Scaffolding Truss System
The 10x8x8m Aluminum Layher Scaffolding Truss System is a professional stage support structure designed for concerts, outdoor events, and exhibitions. Built with high-strength aluminum alloy, it combines lightweight portability with exceptional load-bearing performance.
Using the Layher Ringlock connection system, this truss structure allows for quick assembly, high stability, and flexible configurations. It can be used for stage roofs, lighting rigs, sound towers, and large-scale event structures.
| Item |
Specification (square truss) |
Qty |
| Boom |
30×30, 30×40, 30×50 (C350×350, C350×289) |
8 pcs |
| Filter |
Steel Sleeve Block × 5 |
5 pcs |
| Tower |
Steel base 2 pcs, support bracket 1 pc, top section 1 pc (C350×350×8m) |
1 set |
| Roof Pillar |
30×30 (C350×350), height 8m |
2 pcs |
| Top Boom |
30×30 (C350×350) |
2 pcs |
| Collar Boom |
30×30 (C350×289) |
2 pcs |
| Ladder Truss |
C350×350, 295×190 |
3 pcs |
| Roof Accessories |
Single clamp × 8 pcs, double clamp × 6 pcs, steel coupler M10×14 × 6 pcs |
1 set |
| Truss Accessory |
Contact coupler & safety clip 4 pin |
Included |
Ground Flooring System Specifications:
| Item |
Specification |
Quantity |
| Stage Top |
Aluminum topping 3×3×8ft, 18mm Anti-slip plywood |
31 pcs |
| Steel Layer Assembly Stage |
Aluminum frame corner with anti-slip board, diagonal brace, ladder leg, base plate |
31 sets |
| Aluminum Slope Stairs (2m width) |
10 steps, anti-slip platform |
1 set |
| US Model Handrail for Right Side |
1m high, length 1000mm |
3 pcs |
| Handrail for Back Stage |
Ladder 1000×800mm |
3 pcs |
Additional Layer Truss System Specifications:
| Item |
Specification |
Quantity |
| Ledger (1.5m, 2.0m) |
Steel tube, standard connection |
28 pcs |
| Layer Truss |
Ringlock type with horizontal brace |
20 pcs |
| Layer Post |
Vertical post 1.5m/2.0m |
35 pcs |
| Left & Right Rail |
Safety guard rail |
10 pcs |
| Water Roof 12×8m with Canopy |
PVC waterproof fabric, aluminum frame |
1 set |
Key Features
Strong & Lightweight:
Made from high-grade aluminum alloy with excellent strength-to-weight ratio.
Layher Ringlock Design:
Fast and secure assembly with wedge-lock joints.
Flexible Setup:
Modular design can be customized to different event sizes.
Durable for Outdoor Use:
Anti-corrosion surface treatment ensures long service life.
High Load Capacity:
Perfect for LED screens, lighting, and audio equipment.
Customizable Dimensions:
Available in 10x8x8m and other size options.
💡Need a Different Size or Custom Design?
Our portable folding steel stages are available in multiple sizes, and we also provide customized solutions based on your event requirements.
