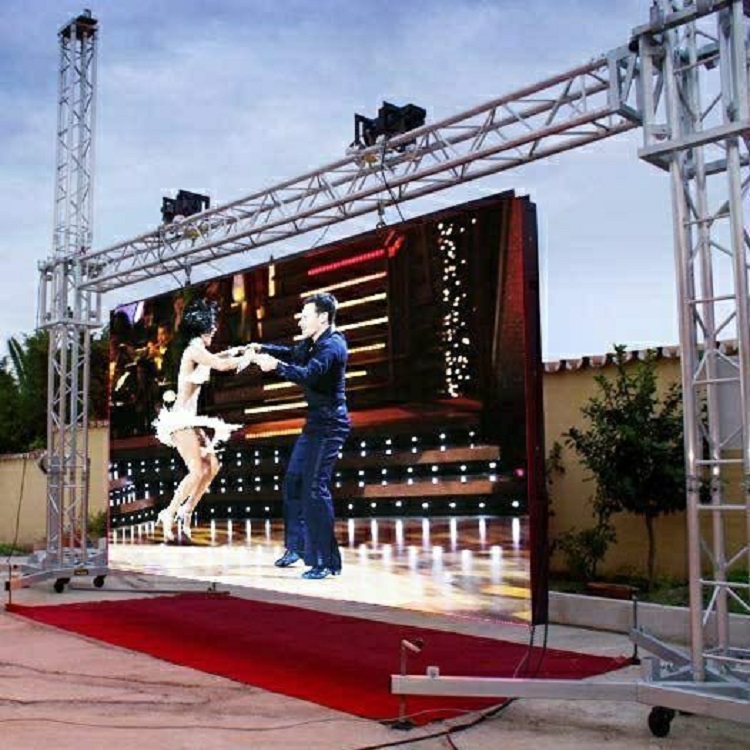

Ground Support Goal Posts Truss System for LED Screen
Components and Materials:

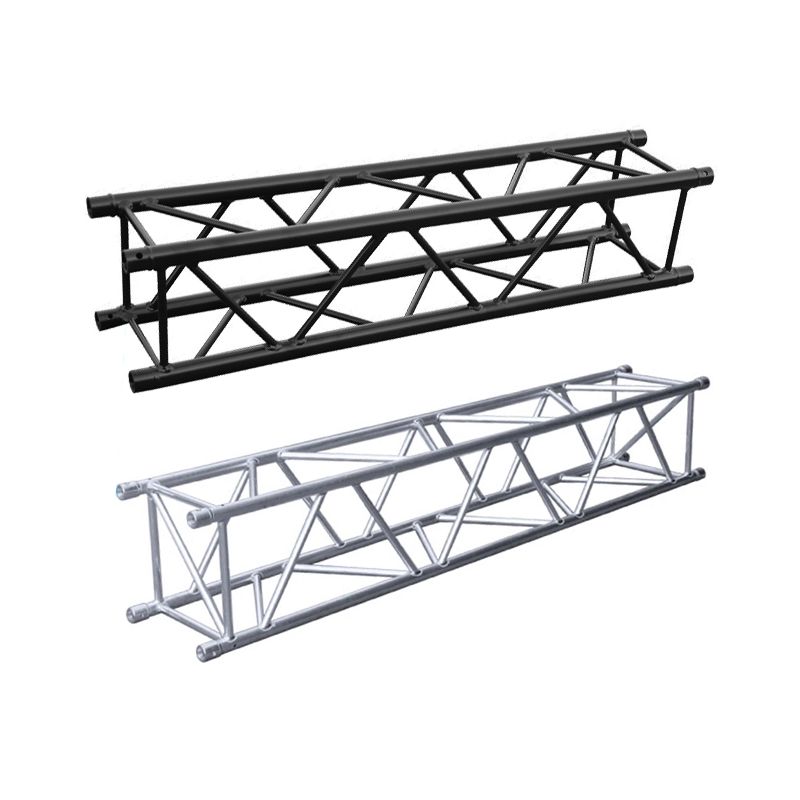

Truss Structure:
- Material: High-grade aluminum alloy, known for its excellent strength-to-weight ratio and corrosion resistance.
- Design: The truss system features a modular design with both vertical and horizontal trusses to form a stable frame.
Support System:
- Base Plates: Heavy-duty base plates provide a stable foundation and distribute the load evenly across the ground.
- Bracing: Includes cross braces and diagonal braces to enhance stability and rigidity.
Mounting Hardware:
- Brackets and Clamps: Specialized brackets and clamps to securely hold and mount LED screens.
- Hoisting Mechanism: May include manual or electric hoists and winches for lifting and precisely positioning the LED screens.
Technical Specifications:
Packing weight: 400kg
Packing volume: 3cbm
| Item |
Specification (Square Truss) |
Qty |
| Length (M) |
Main Tube (MM) |
Size (MM) |
| Beam |
3 |
50×3.0 |
CS389×389 |
2 pcs |
| Pillar |
3 |
50×3.0 |
CS289×289 |
2 pcs |
| 1 |
50×3.0 |
CS289×289 |
2 pcs |
| Tower |
Spigot Sleeve Block S |
2 pcs |
| Steel Base S |
2 pcs |
| Top Section S |
2 pcs |
| Manual hoist, BA05 2 Tons |
2 pcs |
| Spigot Hinge Section, Height 1m |
2 pcs |
| Fibre sling, BA04, 2 tons 3m |
2 pcs |
| Long outrigger |
8 pcs |
| Truss Accessory |
Conical coupler & Safety clip & pin |
Whole set |


💡Need a Different Size or Custom Design?
Our concert LED screen truss are available in multiple sizes, and we also provide customized solutions based on your event requirements.
