P3.91 H Series Waterproof HD LED Display

P3.91 H series waterproof HD LED display represents a paradigm shift in LED display technology. Its comprehensive features, from enhanced signal stability to streamlined maintenance, empower users to create captivating and impactful visual experiences. This series effectively combines technological innovation with user-centric design, solidifying its position as a leading solution for contemporary visual communication needs.

Waterproof Modular Concert LED Screen

The P3.91-H series delivers high-performance LED display technology with a perfect balance of visual quality, flexibility, and user-friendly design.



Product Features:

  • Stable & Reliable Signal:

Equipped with gold-plated connectors to ensure consistent signal transmission and superior display performance.



  • Error-Free Installation:

The anti-dummy design prevents connection mistakes and speeds up setup.



  • Flexible Configuration:

Supports various shapes and layouts, ideal for creative and customized display designs across different environments.



  • Front Maintenance System:

Lock + magnetic module design allows quick, safe access. Hidden handles enable single-person operation.



  • Fast Module Replacement:

Independent power and control box design allows easy, tool-free replacement, minimizing downtime.



  • Seamless Splicing:

High-precision alignment ensures a flat, gapless visual surface with stunning uniformity.



  • Durable Aluminum Housing:

Offers excellent heat dissipation, corrosion resistance, and long-lasting performance.



Product Specifications:

Type Number R391W-500H R391W-1000H
Dimension (MM) 500×500×85MM 500×1000×85MM
Max. Power (W) 200W 400W
Cabinet Weight (KG) 7.78KG 13.2KG
Refresh Rate (Hz) 1920 / 3840Hz
Pixel Pitch (MM) 3.91MM
LED Standard SMD1921
Scan Mode 1/16 Scan
Pixel Density (Dot/㎡) 65536 Dot/㎡
Brightness (CD/㎡) 4500 CD/㎡
Viewing Angle 120°
Protection Level IP65
Cabinet Material Aluminum Alloy
Maintenance Method Front Maintenance
Grey Level 12-16 Bit
Working Temperature -20~60℃
Working Humidity 10%-90% RH
Life Span ≥50000 Hours
Working Voltage AC 110V / 220V, 50/60Hz

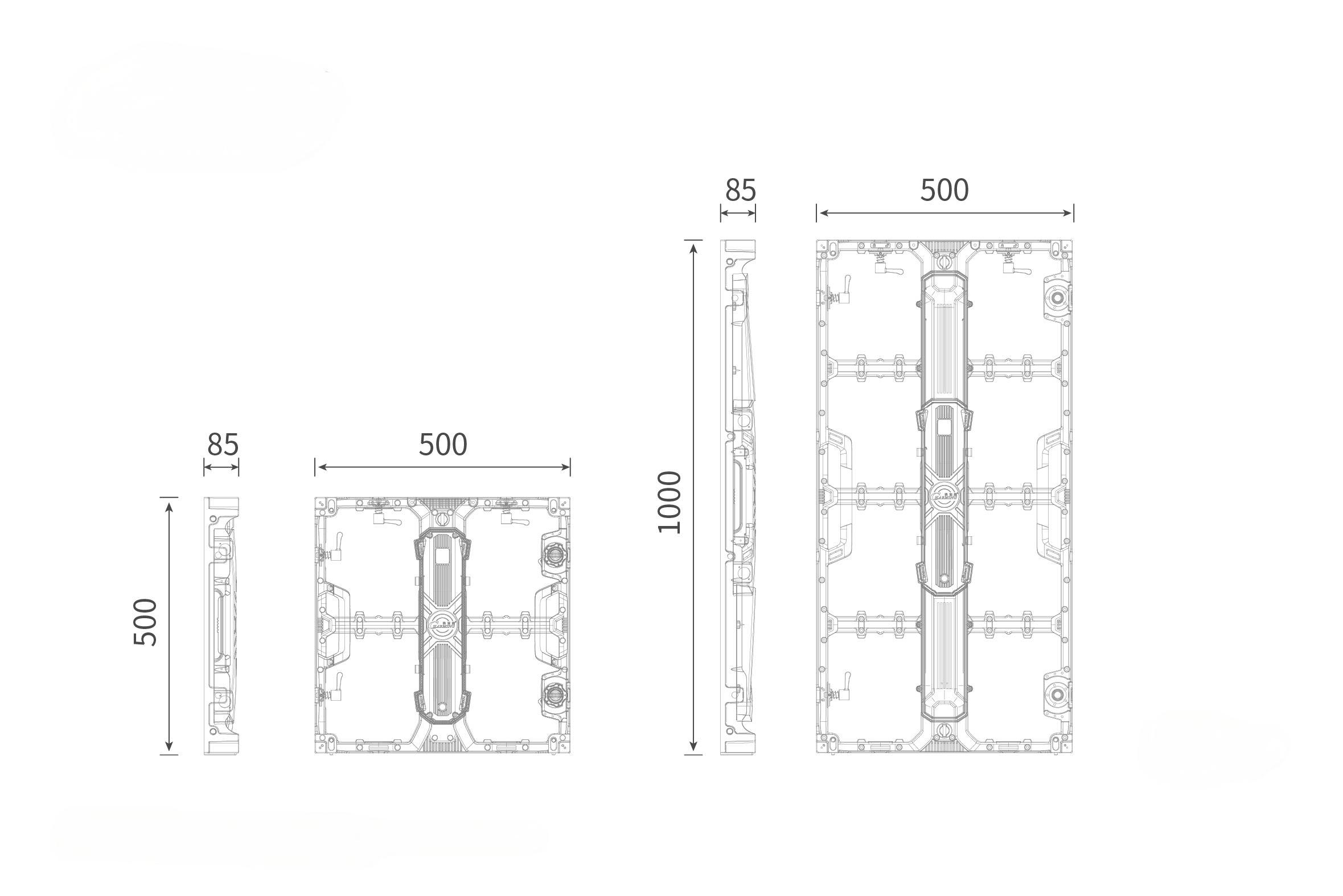

P3.91-H Series LED Display sizes

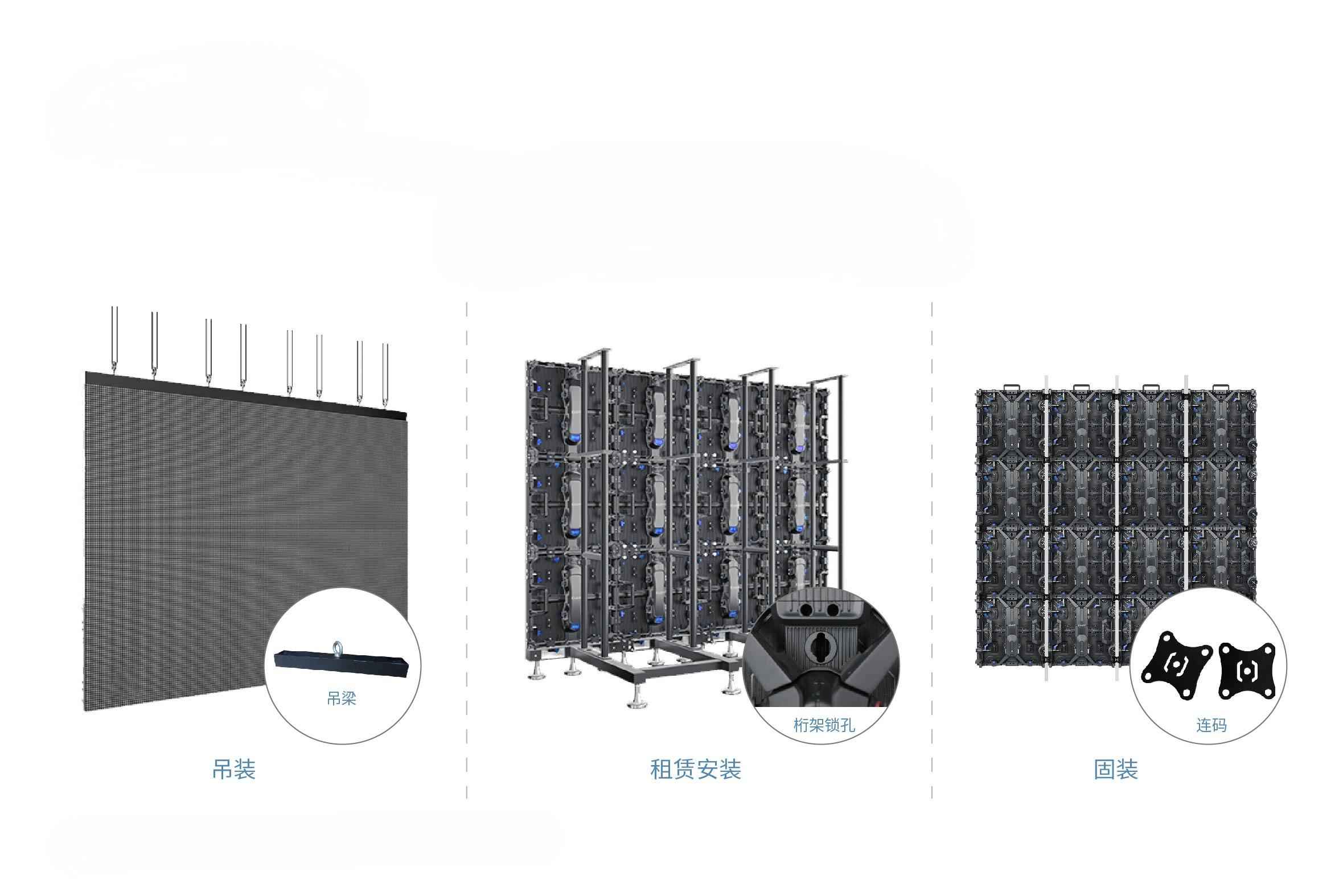

P3.91-H Series LED Display installation
